Blue ford tilt table medical vertical rehabilitation bed

Product Description：

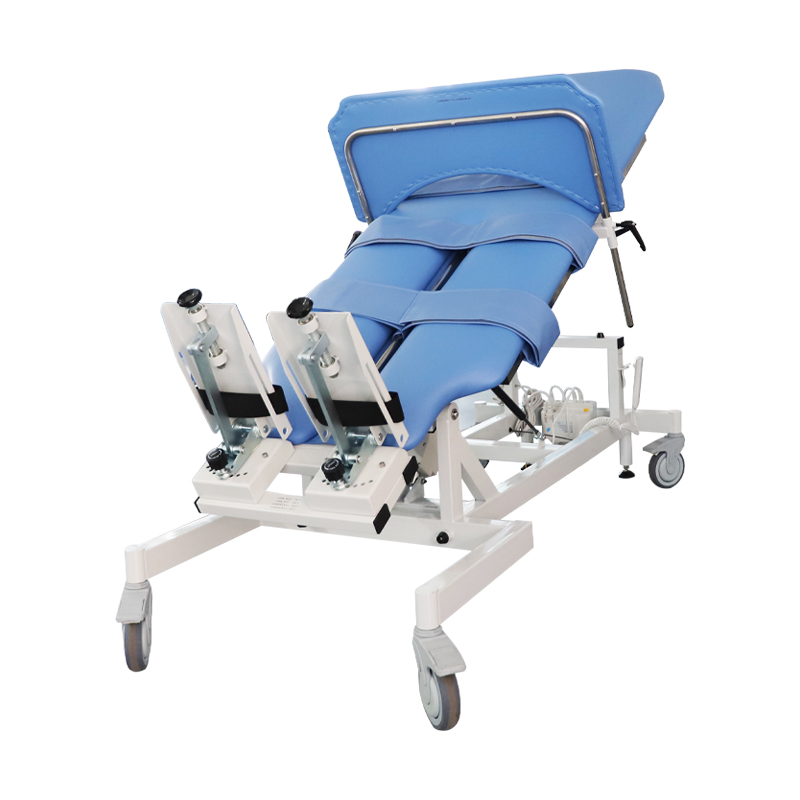

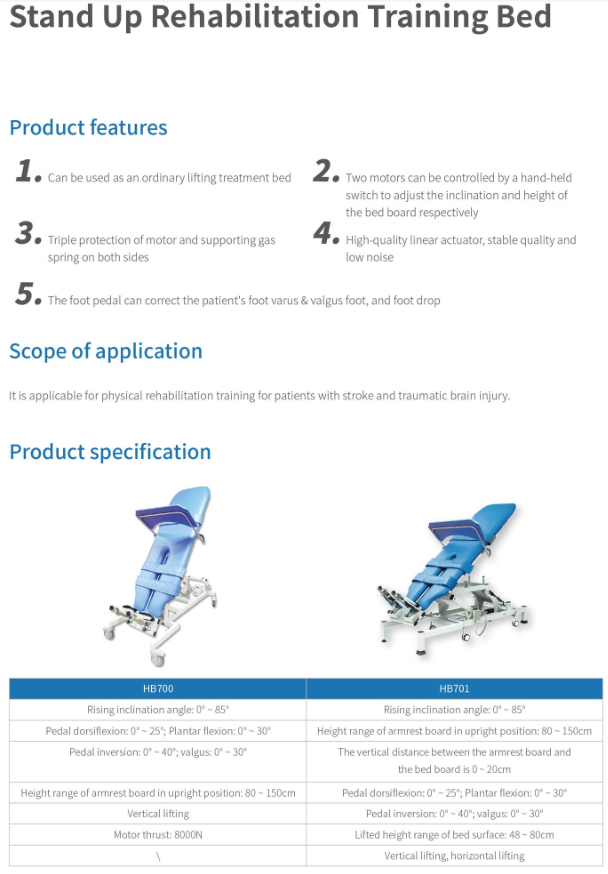

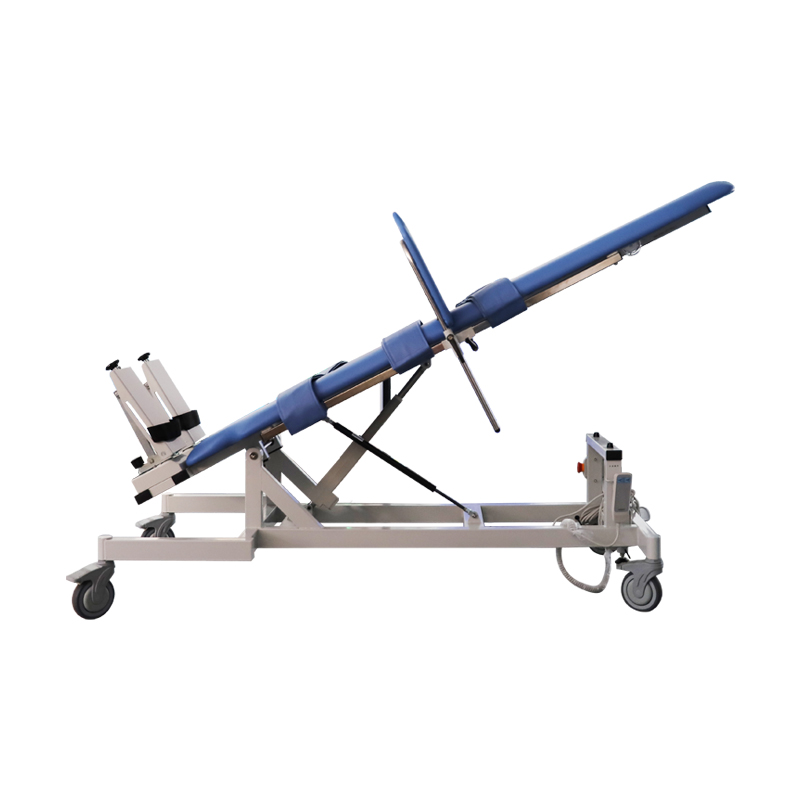

HB700 Stand Up Rehabilitation Training Bed

Technical parameters:

1. Hand-held controller to adjust the elevation and angle of the bed;

2. Two motors respectively adjust the inclination and height of the bed board;

3. High-quality universal wheels, easy to transfer to the ward for use

4. High-quality linear actuator, with stable quality and making low noise;

5. Supply voltage AC 220 V ± 10%, supply frequency 50 Hz ± 2%;

6. Input power 120VA;

7. The maximum turning thrust of the motor is 8000N, the rising angle: 0～85°;

8. The height adjustment range of the armrest board in the upright position: 850～1500mm, tolerance ±50mm;

9. The vertical distance between the armrest board and the bed board: 0～200mm; the maximum distance is ±40mm;

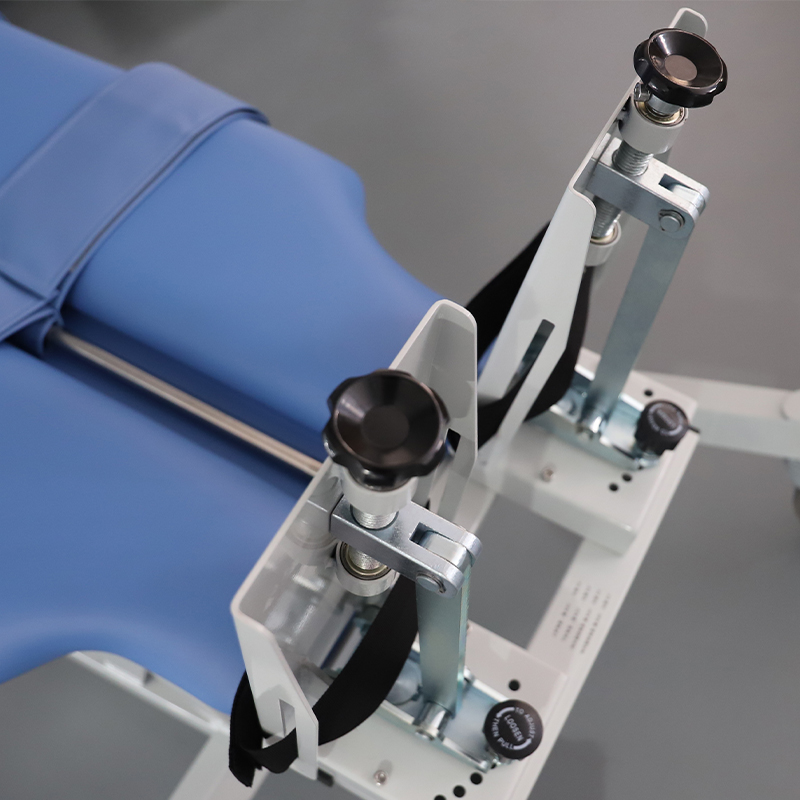

10. ★ Foot pedal dorsiflexion: 0°～25°, plantar flexion 0°～30°, tolerance ±5°;

11. ★ Pedal inversion: 0°～40°, ectropion 0°～30°, tolerance ±5°;

12. Mattress size: 1900*630mm, tolerance ±50mm;

13. Bed size: 2080mm×820mm×480mm(Lowest position, including mattress), tolerance ±50mm;

14. Safe working load of bed board: 1700N;

15. Safe working load of lifting frame: 2200N
